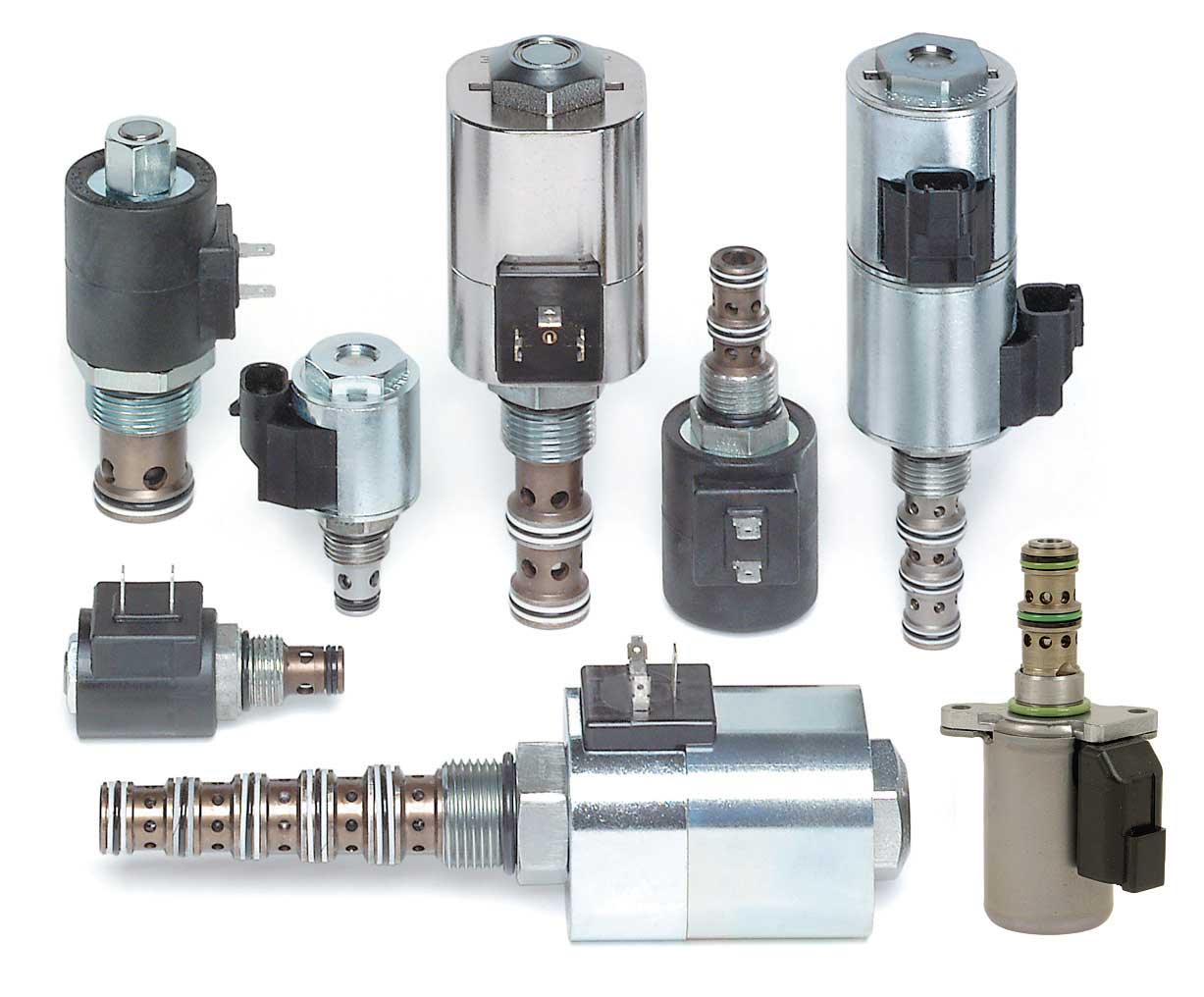

Solenoid Operated On/Off Valves

Name: Solenoid Operated On/Off Valves
SKU: ac0e77d88fa5
Price: 87.50 AUD
Availability: InStock

HydraForce

Sale!

Ordering Guide

The ordering guide below provides technical specifications to assist you with your selection. When you are ready to order, simply scroll down to the 'Place your Order' section below the Ordering Guide or click on a part number in the Ordering Guide table.

Poppet Type – Two Way Normally Closed

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

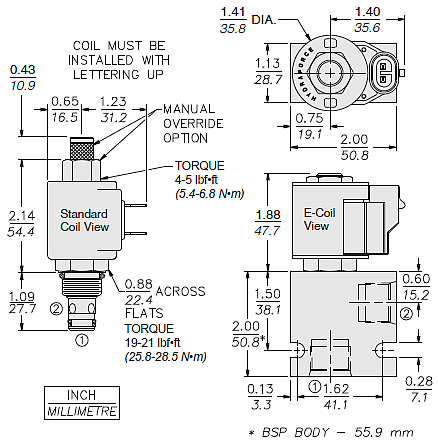

SV08-20-0-N-0		23	VC08-2	Download

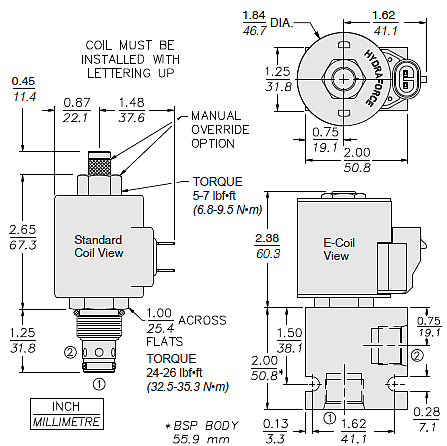

SV10-20-0-N-0		45	VC10-2	Download

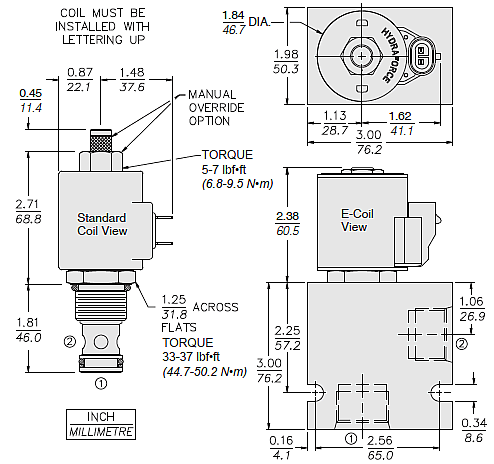

SV12-20-0-N-0		114	VC12-2	Download

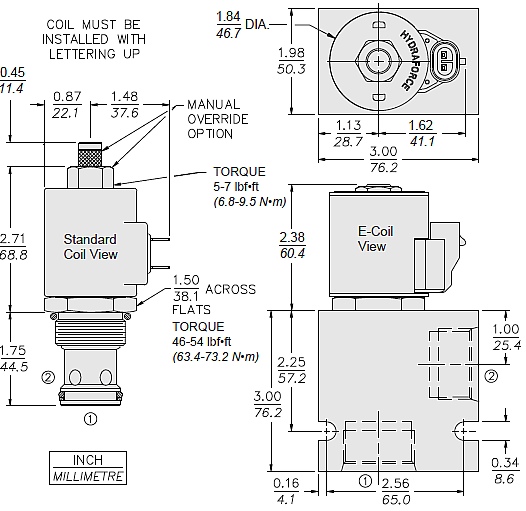

SV16-20-0-N-0		132	VC16-2	Download

Poppet Type – Two Way Normally Open

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

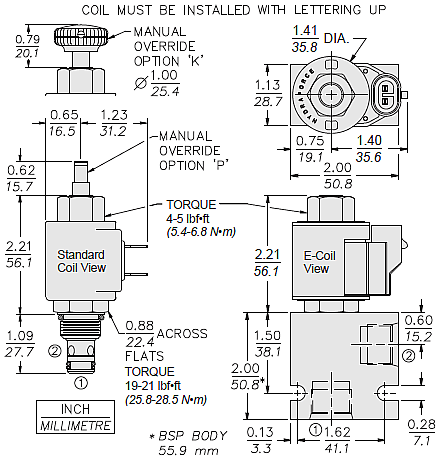

SV08-21-0-N-0		30	VC08-2	Download

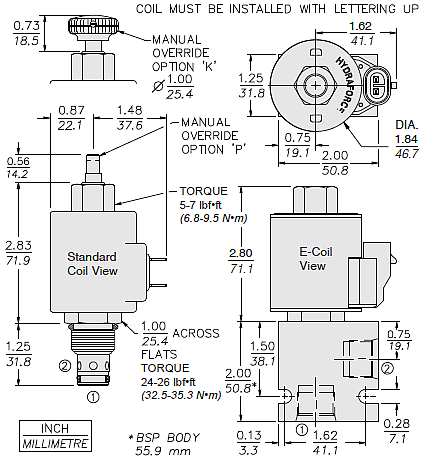

SV10-21-0-N-0		68	VC10-2	Download

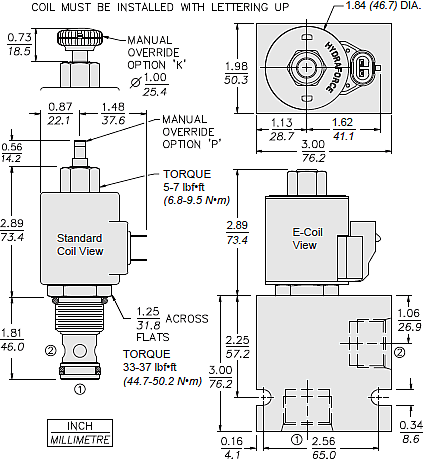

SV12-21-0-N-0		114	VC12-2	Download
SV16-21-0-N-0		114	VC16-2	Download

Poppet Type – Two Way Normally Closed with Reversed Flow Energised

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV08-22-0-N-0		26	VC08-2	Download
SV10-22-0-N-0		57	VC10-2	Download
SV12-22-0-N-0		114	VC12-2	Download

Poppet Type – Two Way Normally Open with Reversed Flow De-Energised

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV16-22-0-N-0		132	VC16-2	Download

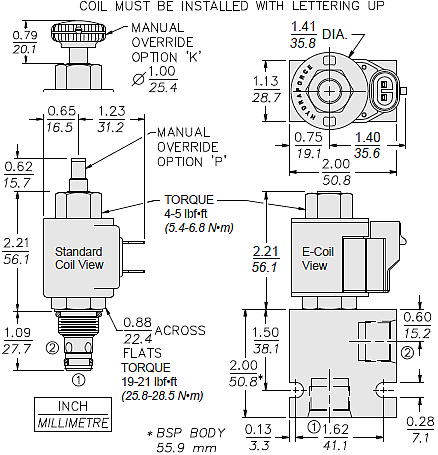

SV08-23-0-N-0		30	VC08-2	Download

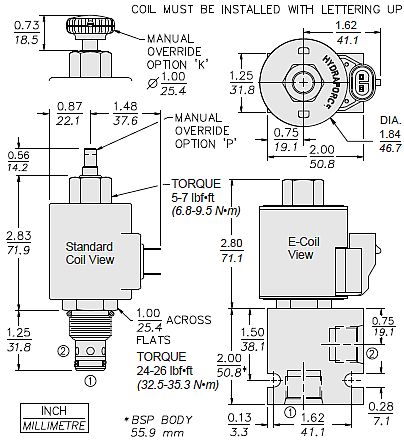

SV10-23-0-N-0		68	VC10-2	Download

Spool Type – Two Way Normally Closed

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV10-23K-0-N-0		68	VC10-2	Download

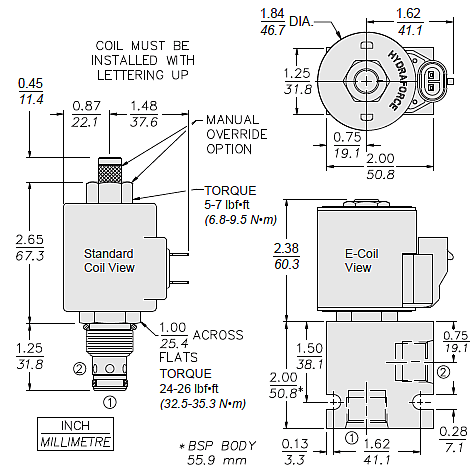

SV10-24-0-N-0		38	VC10-2	Download

Spool Type – Two Way Normally Opened

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV08-25-0-N-0		9	VC08-2	Download

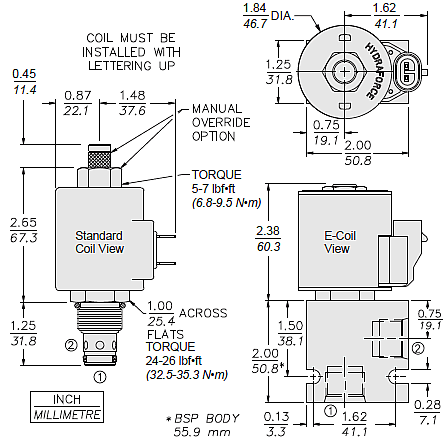

SV10-25-0-N-0		22	VC10-2	Download

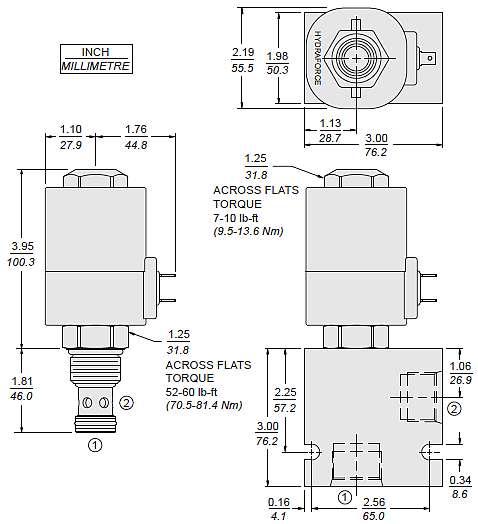

SV12-25-0-N-0		76	VC12-2	Download

Poppet Type – 2 Way Normally Closed – Blocking/Low Flow

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

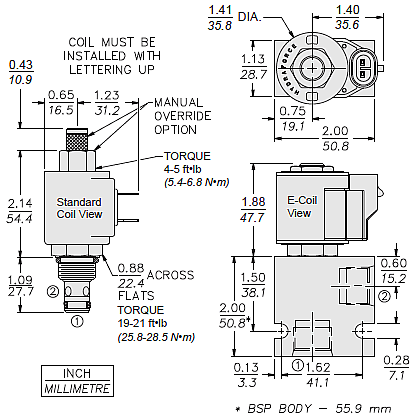

SV08-26-0-N-0		1.9	VC08-2	Download

Spool Type – Three Way

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

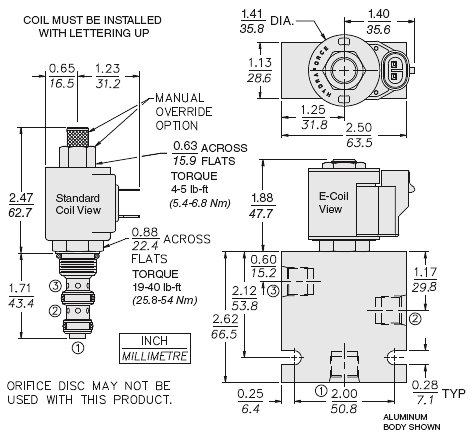

SV08-30-0-N-0		15	VC08-3	Download
SV08-30M-0-N-0		15	VC08-3	Download
SV58-30-0-P-0		15	VC10-3	Download
SV08-31-0-N-0		11	VC10-3	Download

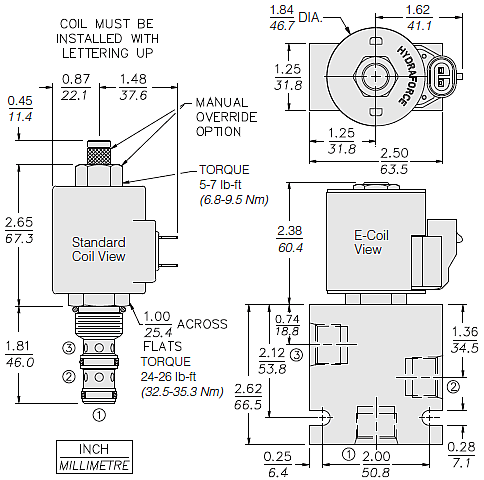

SV10-31-0-N-0		22	VC10-3	Download

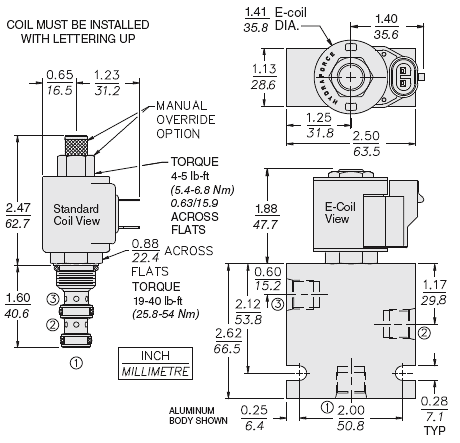

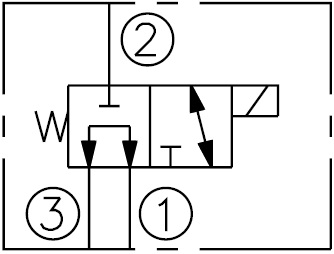

SV08-33M-0-N-0		11	VC08-3	Download

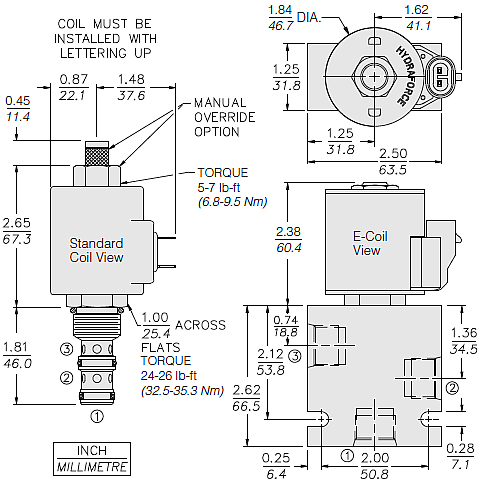

SV10-34-0-N-0		23	VC10-3	Download
SV10-34M-0-N-0		23	VC10-3	Download

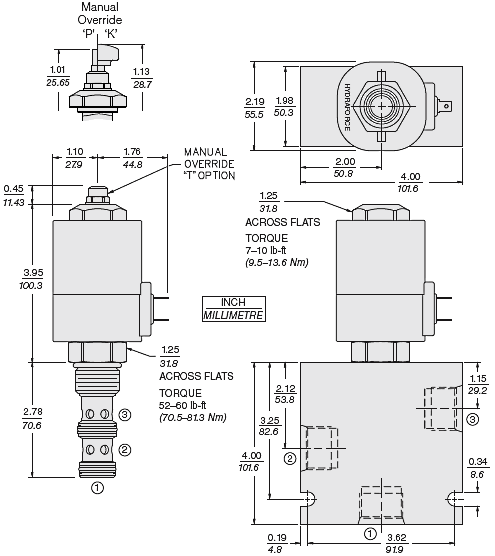

SV12-34-0-N-0		60	VC12-3	Download

Spool Type – Four Way Two Position

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

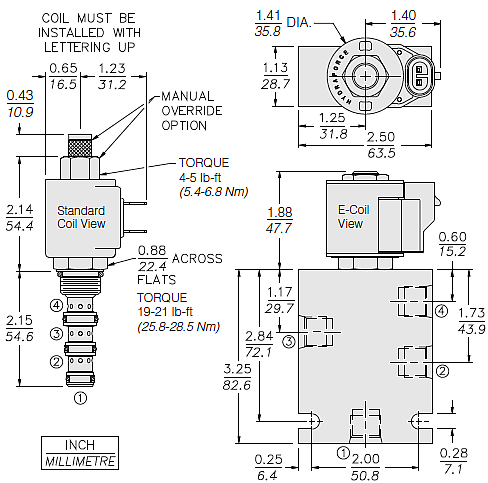

SV08-40-0-N-0		11	VC08-4	Download
SV08-40M-0-N-0		11	VC08-4	Download

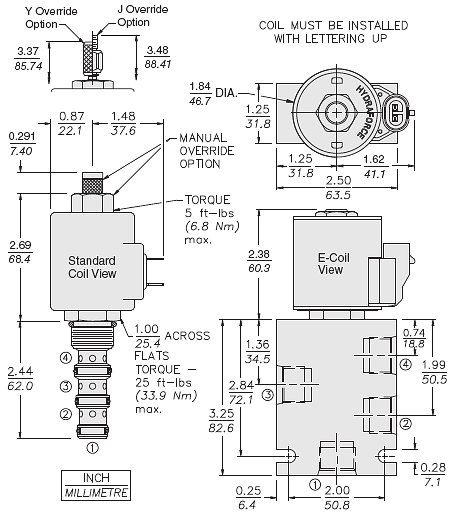

SV10-40-0-N-0		22	VC10-4	Download
SV10-41-0-N-0		26	VC10-4	Download

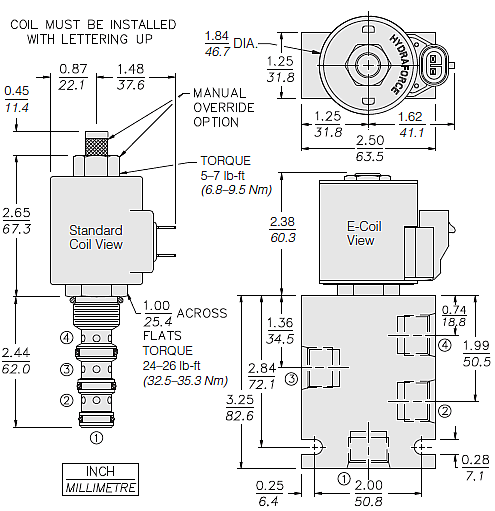

SV10-42-0-N-0		22	VC10-4	Download

Spool Type – Four Way Three Position Tandem Centre

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV10-47A-0-N-0		19	VC10-4	Download

Spool Type – Four Way Three Position Open Centre

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV10-47B-0-N-0		22	VC10-4	Download

Spool Type – Four Way Three Position Closed Centre

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet

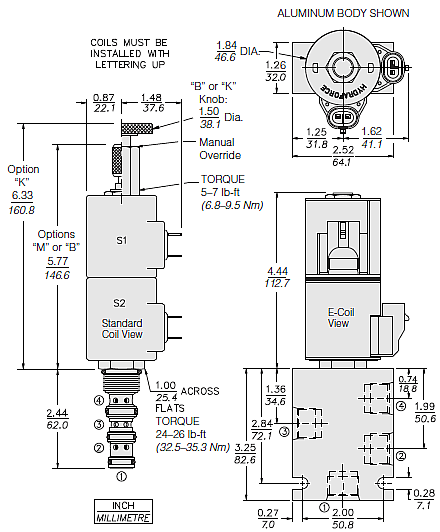

SV10-47C-0-N-0		22	VC10-4	Download
SV10-47CM-0-N-0		22	VC10-4	Download

Spool Type – Four Way Three Position Motor Centre

Part Number	Schematic	Flow Rate (L/min)	Cavity	Data Sheet
SV08-47D-0-N-0		11	VC08-4	Download
SV08-47DM-0-N-0		11	VC08-4	Download

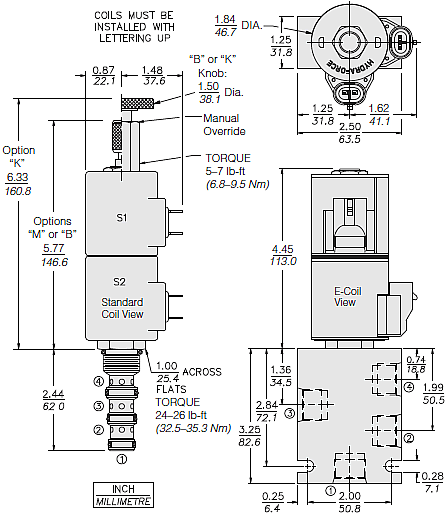

SV10-47D-0-N-0		22	VC10-4	Download
SV10-47DM-0-N-0		22	VC10-4	Download

Place your Order

To make a purchase, simply scroll down to your desired part number, enter your order quantity in the box provided and then click on the 'Add to cart' button to add the product to your shopping cart.
